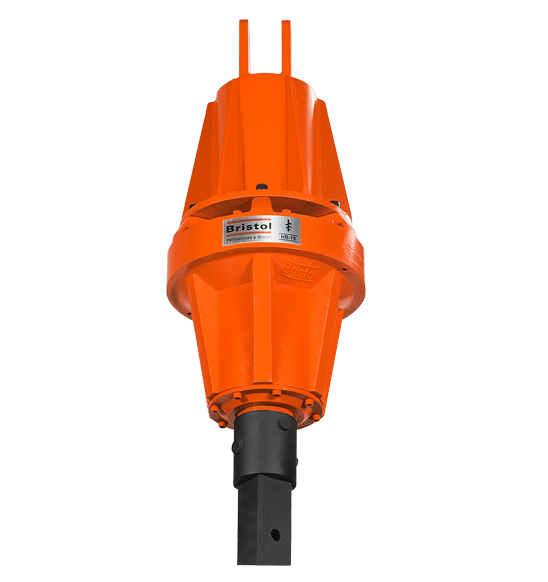

HB-19 Hydraulic Auger
HB-19 Hydraulic Auger is already established in the market and combines ruggedness, versatility, work capacity, and economy for all kinds of needs. Indicated to be coupled to heavy machines, such as articulated cranes and excavators.
HB-19 Hydraulic Auger stands out for its strength and durability in conditions of intense use, as well as for its versatility combined with superior performance. It can be employed in a wide range of activities, responding to almost all ground drilling needs in the various segments, in civil construction in general and infrastructure services.
Maintenance and Warranty
Manufactured in Brazil with the most advanced technology under the strictest standards of quality, delivering ruggedness, reliability, easy maintenance and spare parts supply, with a one-year warranty against manufacturing defects.
Features
It weighs 264lb and requires a hydraulic flow rate of up to 20 gpm, drilling between 16 ft to 39 ft deep, in clayey, sandy, or rocky soils, using tapered auger with teeth or bits of up to 55 in in diameter, has a reduction of 9:1, maximum rotation of 31 rpm and maximum torque of 4979 ft-lb.
How to use
HB-19 Hydraulic Auger can be easily attached to various types of heavy machinery such as excavators, backhoe loaders, cranes, tractors, trucks, and to mini excavators, observing the guidelines and care of use indicated in the manual.
The attachment of the auger to your machine’s hydraulic arm is easy and quick, hydraulic piping quick hitching, easy to fit extensions to the augers also speed up the work. Lubrication must be applied every 200 hours of use.
Compare Hydraulic Augers
Ratio Torque, Flow Rate and Pressure
