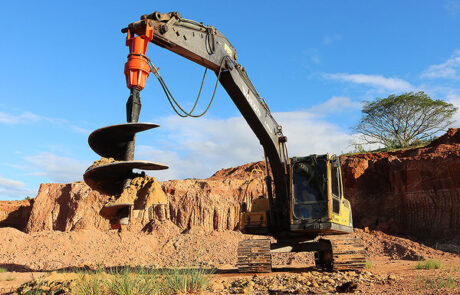

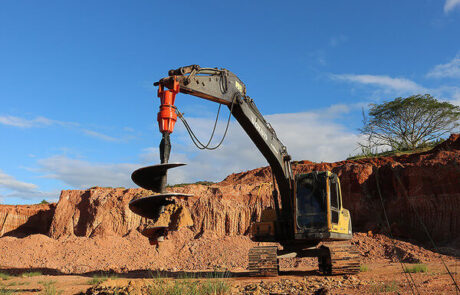

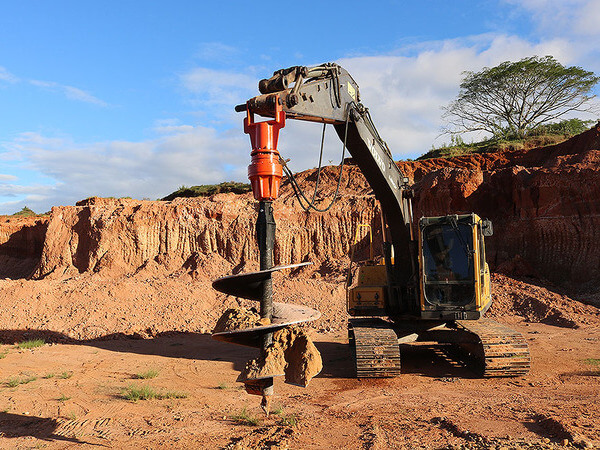

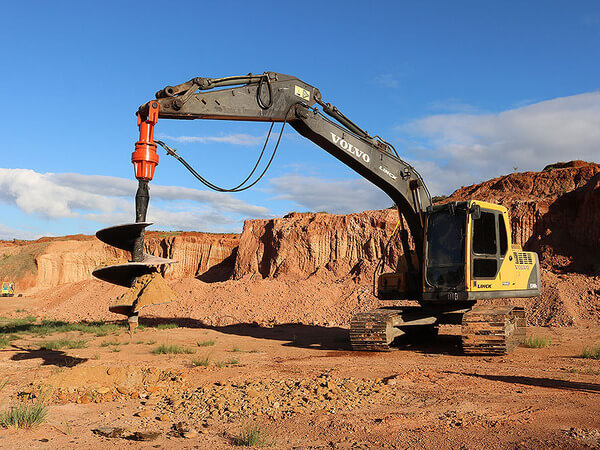

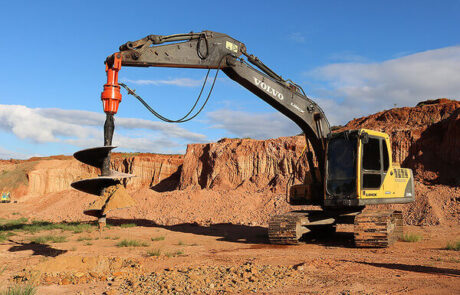

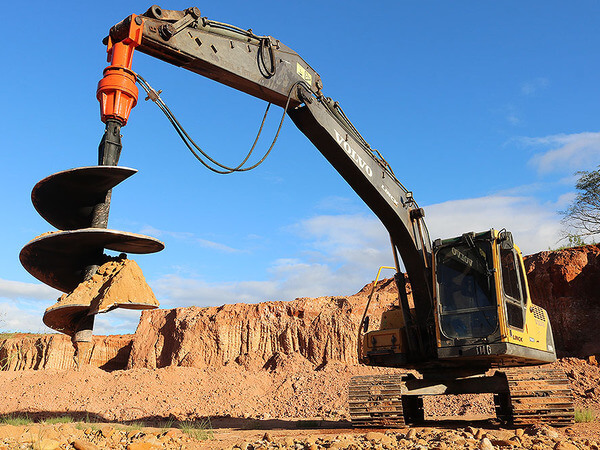

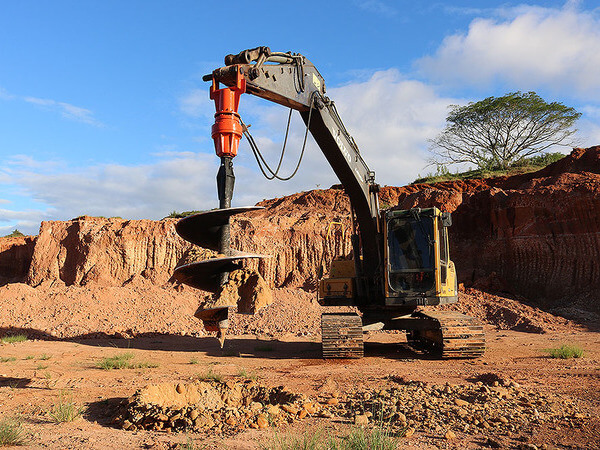

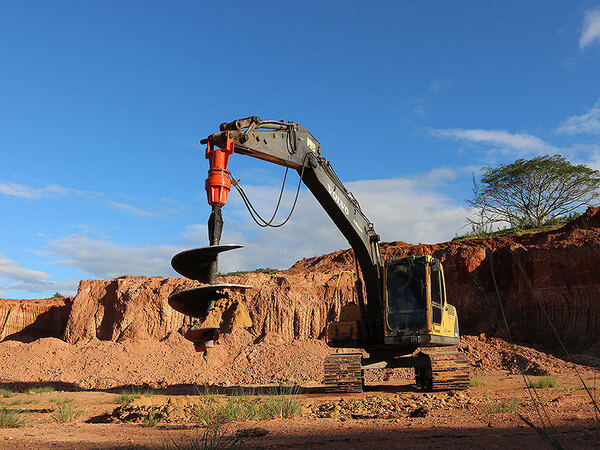

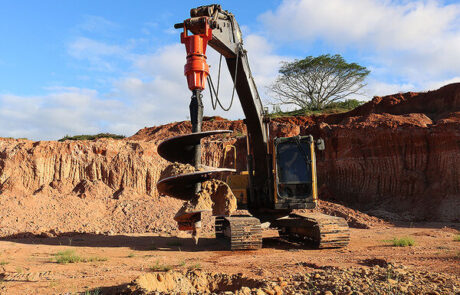

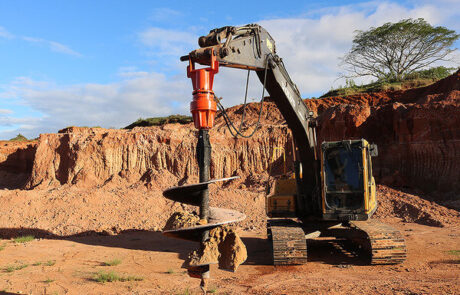

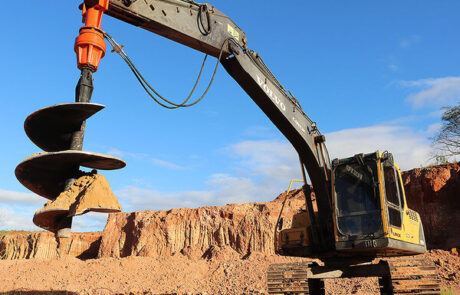

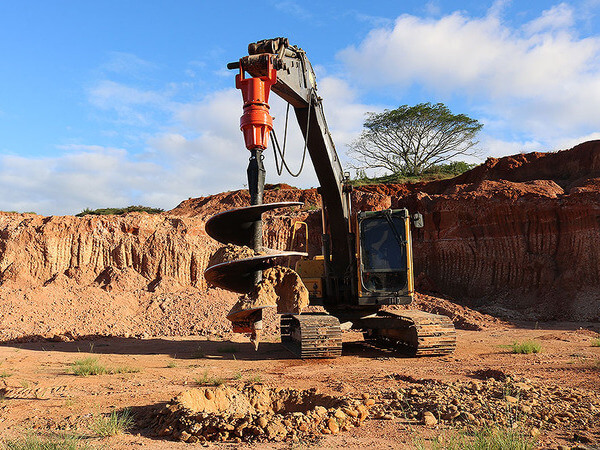

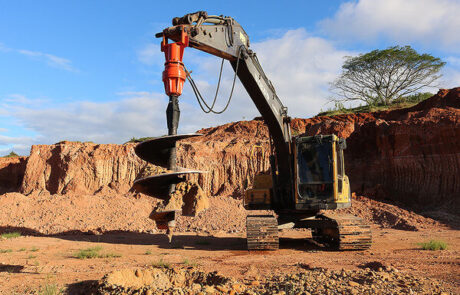

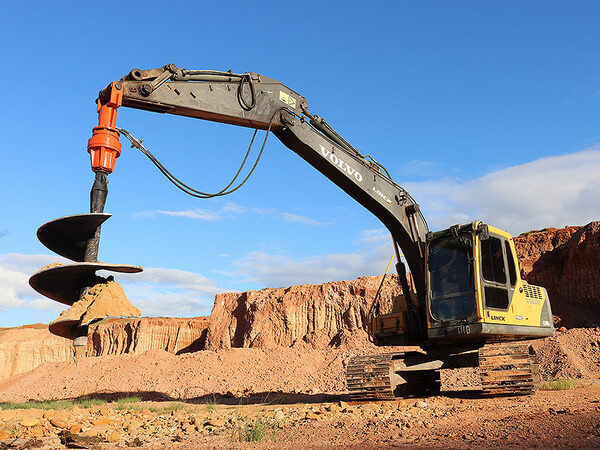

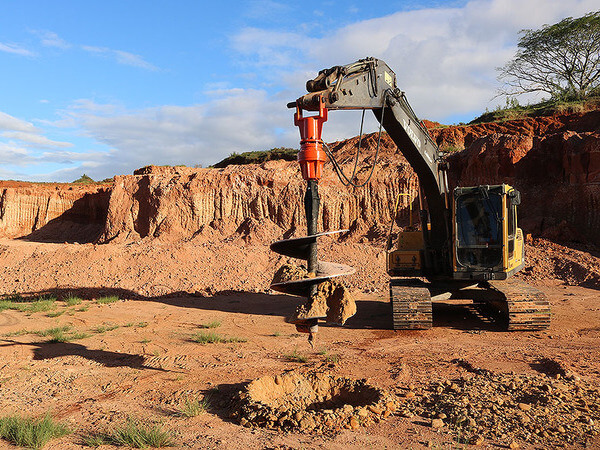

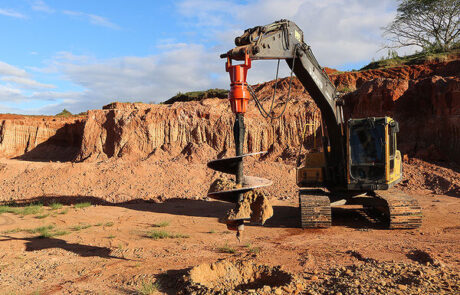

HB-44 Hydraulic Auger
Auger with double Planetary Reducer, hydraulic motor with max. 95 l/min, elongated shaft and ultra-reinforced fairing. Developed for foundations up to 1,500 mm in diameter.
Main Purposes
Medium and large foundations with high depth and diameter, including rocky soils. Suitable for installing poles and transmission towers.
Installation
Very easy, in up to 30 minutes with 1 tractor operator and 1 helper.
Maintenance
Grease change every 200 hours of use.
Warranty
Produced in Brazil with the most advanced technology and manufactured under the strictest quality standards, it delivers robustness, reliability, ease of maintenance and spare parts, with a one-year warranty against manufacturing defects.
Technical Data
HB-44 Hydraulic Auger
| Feature | Value |
|---|---|
| Torque at a Maximum Pressure | 22.211 Nm |

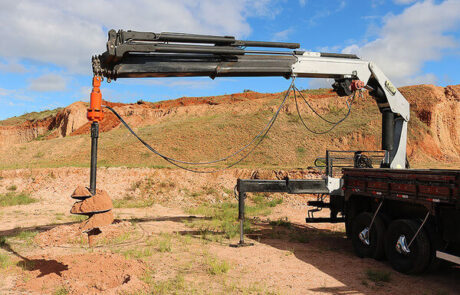

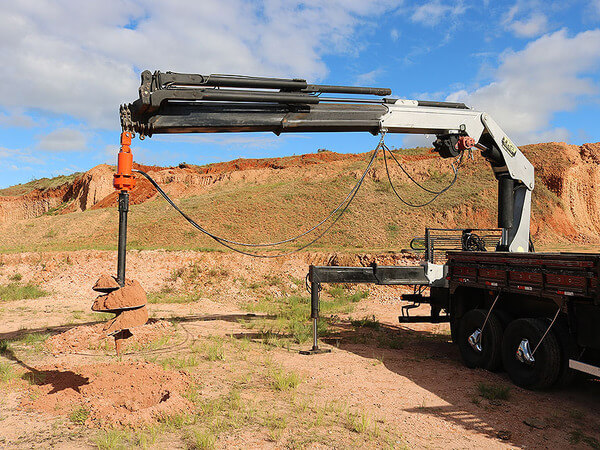

| Featured Machines | Crane, Backhoe, Excavator |
| Maximum Drilling Rotation | 16 RPM |
| Maximum Auger Diameter | 1.500 mm |
| Maximum Drilling Depth | 16 metros |
| Flow rate | 76-95 l/min |
| Pressure Range | 207- 276 bar |
| Maximum Pressure (Do not exceed) | 300 bar |
| Weight without hitch and drill | 182 Kg |
Compatible Augers
Bristol produces a wide range of drill bits and extensions for drilling, which are sized and designed according to the geological characteristics prevailing in the most different regions, as well as vary according to the type of service to be performed: micropiles, large foundations, electrification , etc.
| Type | Indicated | Height | Diameter |
|---|---|---|---|
| Simple Razor Auger | Soils with low levels of obstacles such as earthy, sandy and clayey. Tips and blades made of SAE 1070 carbon steel. | 2.000 mm | de 150 a 1.500 mm |
| Claw Auger | Dense, embankment-like soils with small rocks or stones. Its cutting system is the same used in excavator shells. Consisting of the claw and the claw cover, they are produced in cast iron. | 2.000 mm | de 150 a 1.500 mm |
| Furrower Auger | Hard, compacted soils. The Furrower reaches the ground before the razor, sheltering tears in the ground. Tips and razor and furrower are made of carbon steel SAE 1070. | 2.000 mm | de 150 a 1.500 mm |
| Tungsten Auger Bits | Resistant soils of sedimentary geology, with the presence of stones, gravel or slate. Bits are made of tungsten, a material with high hardness and density. | 2.000 mm | de 150 a 1.500 mm |
| Continuous Helix Auger | Drilling and injecting concrete into deep foundations. It has a helicoid in its entirety, which allows the extraction of the earth in one go, in addition to a channel for the passage of concrete inside it. | de 2.000 mm até 12.000 mm | 250 a 500 mm |

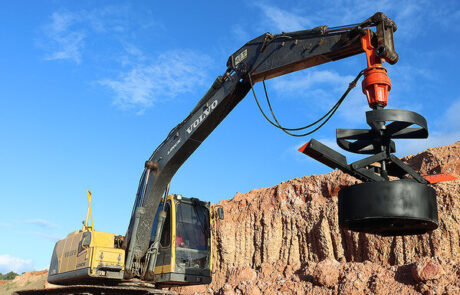

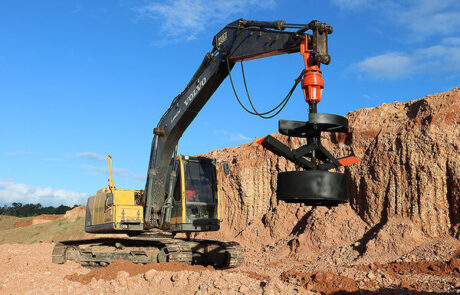

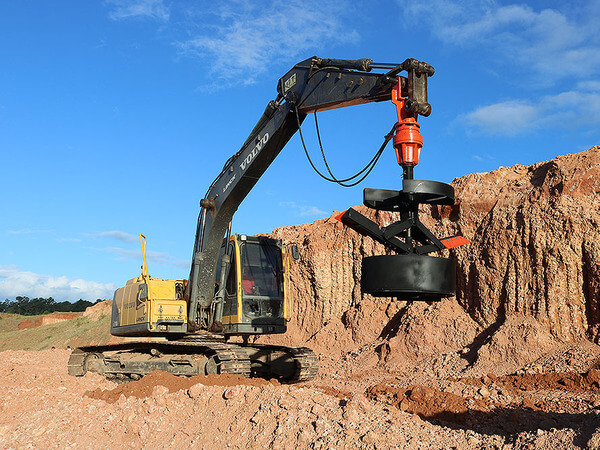

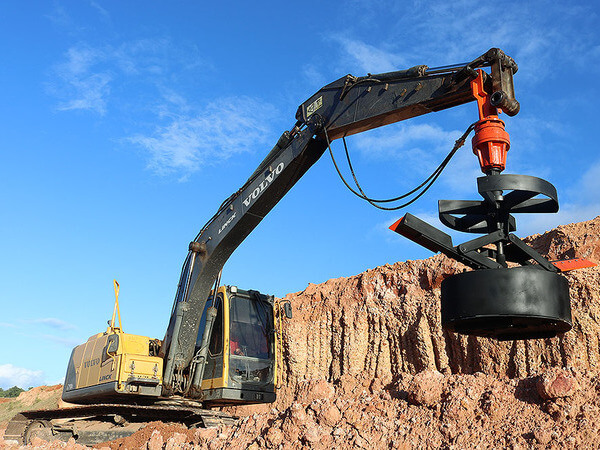

| Pipe Auger | For widening the base, for making shoes or pipe. Developed with the aim of providing compact and safe equipment, as it greatly reduces the risk of accidents due to landslides. It is widely used in foundations that support transmission towers and also in civil construction. | 2.000 mm | closed from 500 to 1.500 mm / open from 1.000 to 3.000 mm |
| Simple Extension | Extension with fixed length for 1 to 4 meter increase in drills. Its purpose is to carry out deeper foundations. | 1.000 a 4.000 mm | 80 mm |
| Telescopic Extension | Extension with variable length to increase from 2 to 8 meters in drills and augers. Its purpose is to create foundations with alternating depths, as it can be used retracted or elongated. | 2.000 a 8.000 mm | 80 a 100 mm |
Video
Compare Hydraulic Augers
RPM x Flow Ratio*
*Torque x Pressure Ratio
Ratio Torque, Flow Rate and Pressure
FAQ
Does the equipment come with the hydraulic hose? Does it always come with 3 mts or can it be longer?
Yes, it always comes with it, but according to the customer’s request, a larger hose size can be supplied.
Which bit is recommended for drilling in rocky soils?
For drilling in rocky soils, the use of bits with bits is recommended.
Are original spare parts available for all products?
Yes, Bristol has the complete line of original spare parts.
What lubrication is required for the equipment?
EP2 lithium grease every 200 hours of use.
What type of drill is recommended for this equipment?
HB – For posts indicated 600mm. For stakes indicated 250mm-300mm For Moirão 400mm.
What is the maximum drilling depth of the equipment?
Depth varies according to drill size, equipment strength and soil type.
