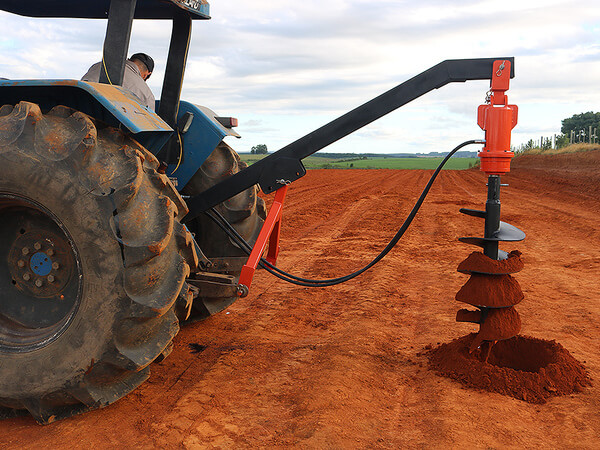

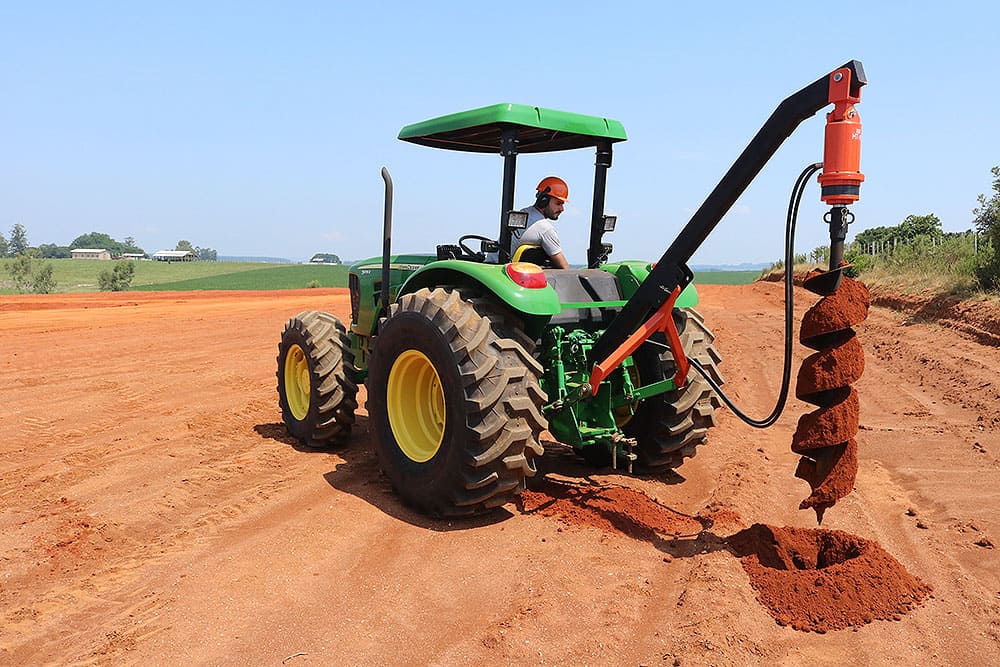

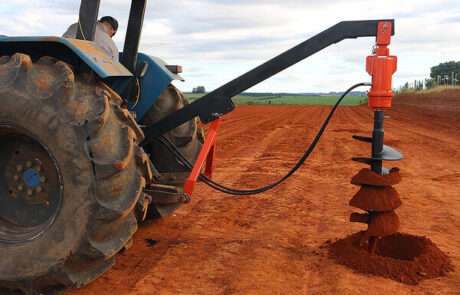

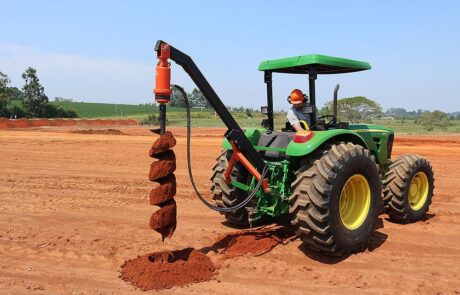

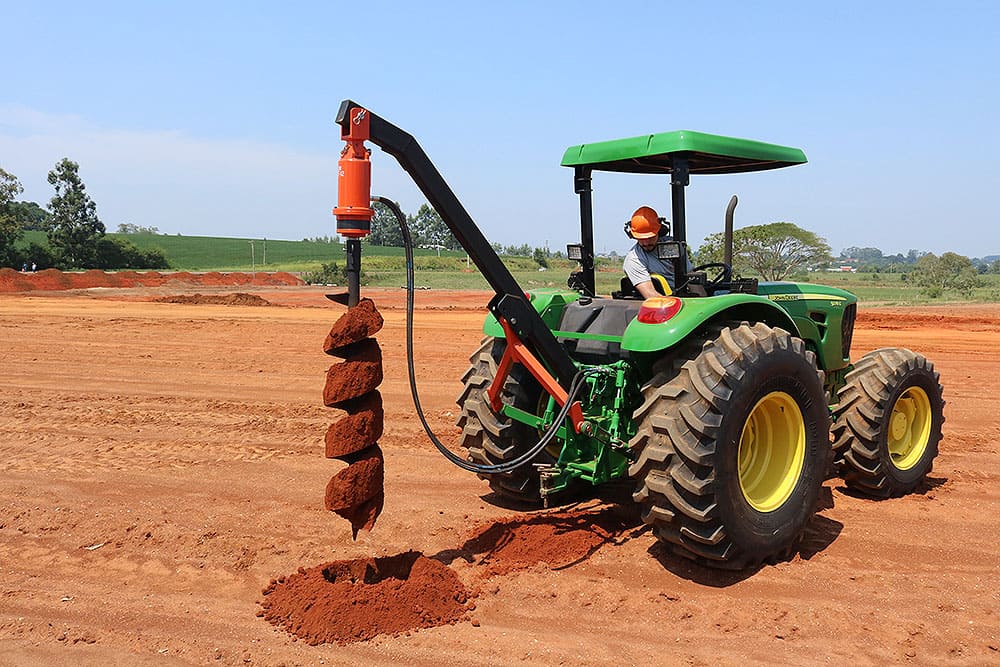

HT-10 Hydraulic Auger
Drill with Planetary Reducer and hydraulic motor with flow rate max. 60l/min. Developed for foundations up to 400mm in diameter.
Main Purposes
Placement of stakes, micro stakes and precast
Installation
Very easy, in up to 30 minutes with 1 tractor operator and 1 helper.
Maintenance
Grease change every 200 hours of use.
Warranty
Produced in Brazil with the most advanced technology and manufactured under the strictest quality standards, it delivers robustness, reliability, ease of maintenance and spare parts, with a one-year warranty against manufacturing defects.
Technical Data
HT-10 Hydraulic Auger
| Feature | Value |
|---|---|
| Torque at a Maximum Pressure | 1.379 Nm |
| Featured Machines | Tractor |
| Maximum Drilling Rotation | 102 RPM |
| Maximum Auger Diameter | 400 mm |
| Maximum Drilling Depth | 1.5 metros |
| Flow rate | 11-60 l/min |
| Pressure Range | 140-175 bar |
| Maximum Pressure (Do not exceed) | 200 bar |
| Weight without hitch and drill | 47 Kg |
Compatible Augers
Bristol produces a wide range of drill bits and extensions for drilling, which are sized and designed according to the geological characteristics prevailing in the most different regions, as well as vary according to the type of service to be performed: micropiles, large foundations, electrification , etc.
| Type | Indicated | Height | Diameter |
|---|---|---|---|
| Simple Razor Auger | Soils with low levels of obstacles such as earthy, sandy and clayey. Tips and blades made of SAE 1070 carbon steel. | 1.500 mm | 150 a 400 mm |
| Claw Auger | Dense, embankment-like soils with small rocks or stones. Its cutting system is the same used in excavator shells. Consisting of the claw and the claw cover, they are produced in cast iron. | 1.500 mm | 150 a 400 mm |
| Furrower Auger | Hard, compacted soils. The Furrower reaches the ground before the razor, sheltering tears in the ground. Tips and razor and furrower are made of carbon steel SAE 1070. | 1.500 mm | 150 a 400 mm |
Bristol Auger Line
RPM x Flow Ratio*
*Torque x Pressure Ratio
FAQ
Which bit is recommended for drilling in rocky soils?
For drilling in rocky soils, the use of bits with bits is recommended.
What is the recommended drill diameter for each type of work?
For drilling in rocky soils, the use of bits with bits is recommended.
Are drills used to drill wells?
Bristol drills are indicated for use up to 20 meters deep.
Are original spare parts available for all products?
Yes, Bristol has the complete line of original spare parts.
